EASY INSTALLATION & OPERATION

Assorted with RAM bracket, the T100 tablet is easy to fix on the vehicle. 10.1”

sunlight-readable touch screen delivers clear and smooth visual and operating experience. Partnered with AllyNav Navigation system software, it is easy to get started with T100 tablet for your navigation tasks via multiple work modes.

POWERFUL ENGINE

Embedded with high precision GNSS module, T100 tablet is capable of tracking all running constellations, providing centimeter-level navigation accuracy. The Android 6 OS and Quad-core 1.5GHz CPU gives T100 strong processing capability. With high precision and low latency, T100 can largely improve your working efficiency and productivity.

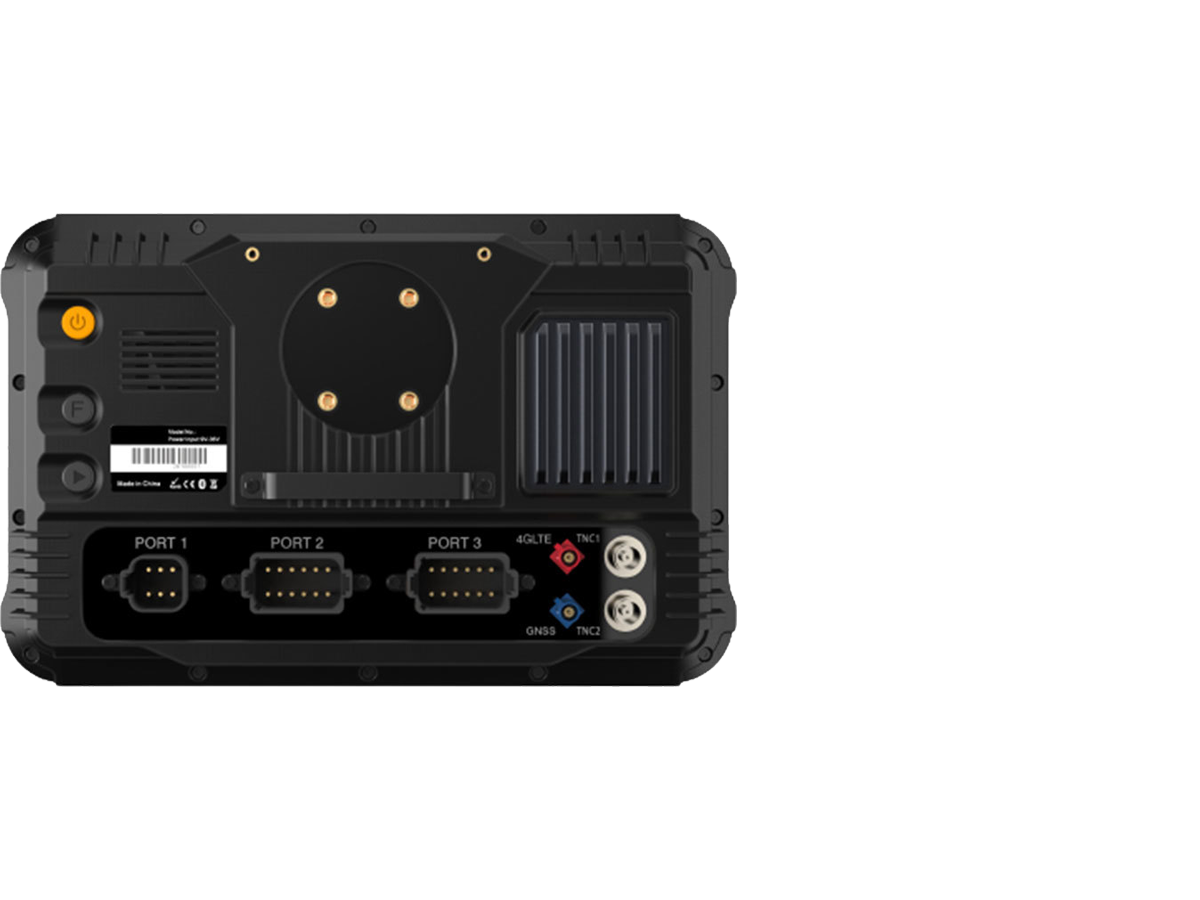

ABUNDANT INTERFACE

As a vehicle-mounted tablet, T100 is equipped with abundant interfaces including serial port, CAN BUS, USB, suitable for versatile vehicles. Supporting 4G/WiFi/Bluetooth/Ethernet, T100 offers flexible data transmission method for users. Moreover, the T100 supports wide voltage input, over-current and over-voltage protection, extending the service life.

Product description
Parameters
Product advantages



SYSTEM DISPLAY GNSS
Operation System: Android 6.0
CPU: Quad-Core 1.5GHZ
RAM: 2GB
ROM: 16GB
Flash: T flash, up to 64GB
LCD: 10.1" HD
Brightness: 750Nits, sunlight readable
Resolution: 1024×600 pixels
Touch Panel: Capacitive screen
GPS: L1, L2
GLONASS: L1, L2
BDS: B1, B2
Galileo: E1, E5b
QZSS: L1, L5
SBAS: WAAS, EGNOS, MSAS, GAGAN
RTK Accuracy: H: 10mm+1ppm
                       V: 15mm+1ppm
Heading Accuracy: 0.1°
Timing Accuracy: 20ns
Velocity Accuracy: 0.03m/s
Data Format: RTCM 2.3/3.0/3.2, NMEA0183
Data Update Rate: Maximum 20Hz
COMMUNICATION ELECTRICAL & PHYSICAL ENVIRONMENTAL
WIFI: 2.4GHz IEEE 802.11 a/b/g/n
4G:
FDD-LTE(Band 800 / 1800 / 2100 / 2600 MHz)
TD-LTE(Band 1900 / 2300 / 2500 / 2600 MHz)
WCDMA(Band 850 / 900 / 1900 / 2100 MHz)
GSM/GPRS/EDGE(Band 850 / 900 / 1800 / 1900 MHz)
Bluetooth: V4.1
USB Port: 1×USB2.0 (Host & Debug)
Serial Port: 2×RS232, 1×RS485
CAN Port: 2×CAN (J1939, CANOpen, ISO15765)
Ethernet: 1×RJ45(100M Ethernet)
Input voltage: 9-36 VDC
Power consumption: ≤4.5W
Size: 281×181×42mm
Weight: 1.5 Kg
Waterproof & dustproof: IP65
Shock: Designed to survive a 2m drop onto concrete
Operating temperature: -20 °C to + 70 °C (-4 °F to 158 °F)
Storage temperature: -40 °C to + 85 °C (-40 °F to 185 °F)
Humidity: 100% non-condensing



We could not find any corresponding parameters, please add them to the properties table

EASY INSTALLATION & OPERATION

Assorted with RAM bracket, the T100 tablet is easy to fix on the vehicle. 10.1”

sunlight-readable touch screen delivers clear and smooth visual and operating experience. Partnered with AllyNav Navigation system software, it is easy to get started with T100 tablet for your navigation tasks via multiple work modes.

POWERFUL ENGINE

Embedded with high precision GNSS module, T100 tablet is capable of tracking all running constellations, providing centimeter-level navigation accuracy. The Android 6 OS and Quad-core 1.5GHz CPU gives T100 strong processing capability. With high precision and low latency, T100 can largely improve your working efficiency and productivity.

ABUNDANT INTERFACE

As a vehicle-mounted tablet, T100 is equipped with abundant interfaces including serial port, CAN BUS, USB, suitable for versatile vehicles. Supporting 4G/WiFi/Bluetooth/Ethernet, T100 offers flexible data transmission method for users. Moreover, the T100 supports wide voltage input, over-current and over-voltage protection, extending the service life.
